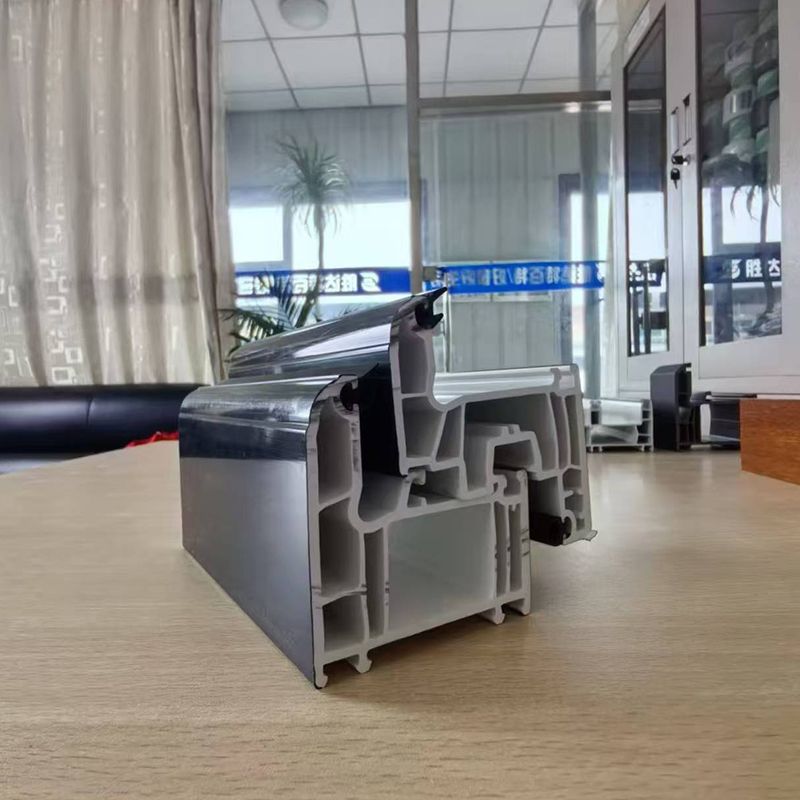

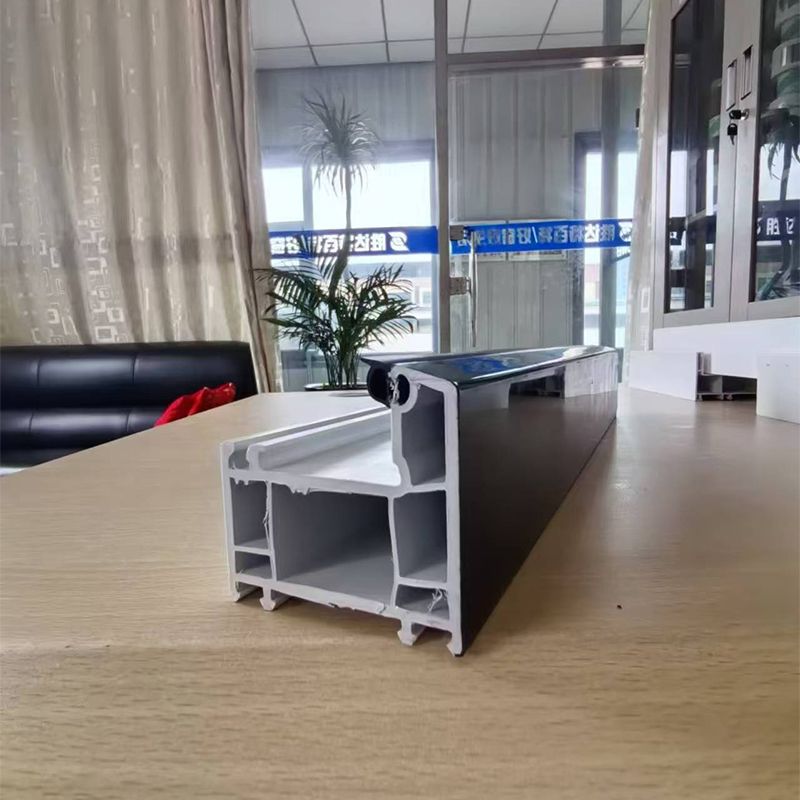

European Series 60mm Casement Window Profile is a high-quality uPVC profile with a 60mm frame width, designed to provide superior energy efficiency and aesthetics. Features include solid construction, excellent sealing performance and a variety of design options to suit a variety of architectural styles. This window profile can effectively improve indoor comfort while enhancing the appearance of the house, making it ideal for use in modern residential and commercial buildings.
Details
Multi-Chamber Design (3–5 Chambers): Improves thermal insulation and sound reduction, suitable for buildings in cold, hot, or noisy environments.
Profile Wall Thickness ≥2.5 mm (GB/T 8814-2004 Compliant): Increases structural strength and impact resistance, ideal for high-rise buildings or areas with strong wind pressure.
High Weather Resistance: Ensures stable performance in humid, rainy, or high-UV areas, suitable for coastal and tropical regions.
EPDM Seals: Enhances air-tightness and water-tightness, effectively reduces indoor air leakage and prevents water infiltration in rainy seasons.
Reinforced Steel Insert (Galvanized Steel): Provides internal support, increases load-bearing capacity, applicable for large-size windows and doors.
Low Maintenance Surface: Resists UV aging, corrosion, and dirt buildup; suitable for both residential and commercial projects with minimal upkeep.
Color Options: White, Woodgrain, Grey, Laminated: Matches various architectural styles, applicable in modern, traditional, and mixed-use buildings.
Eco-Friendly Materials (Lead-Free, Recyclable): Meets environmental requirements for green building projects and public institutions.
Contact Us for Free Samples & Quotes
| Parameter | Value |
|---|---|
| Profile Width | 60 mm |
| Number of Chambers | 3–5 |
| Glass Thickness | Supports up to 24 mm |
| Seal Material | EPDM |
| Wall Thickness | ≥2.5 mm |
| Thermal Insulation (Uw) | ≤1.6 W/m²·K (with double glazing) |
| Sound Insulation | Up to 35 dB |
| Wind Pressure Resistance | ≥ 4.0 kPa |
 |  |
