70 Casement Series

The production of profiles has low energy consumption and the reuse of water resources. Multi chamber insulation structure with low thermal conductivity and significant energy-saving effect.

Email:

sdzt@shengdaprofiles.com

WhatsApp:

Category

Tag list

产品描述

The production of profiles has low energy consumption and the reuse of water resources. Multi chamber insulation structure with low thermal conductivity and significant energy-saving effect. It has the properties of insulation, flame retardancy, fear of acid, alkali and humid environment, and can meet the requirements of large temperature difference and high ultraviolet area. It has excellent anti-aging performance.


Name	70 Flat Frame	70 square open mullion	Steel lining:SGB-06				10B pressure strip
Code name	SD0G70-10	SD0G70-30	Moment of inertia cm⁴	I_x	2.25	2.87	SPXC60B-41
				I_y	2.25	2.87


Name	70 Flat Frame	70 square open mullion	70 external conversion box	Steel lining:SGB-01
Code name	SD0G70-11	SD0G70-31	SD0G70-61D	Moment of inertia cm⁴	I_x	0.86	1.08
					I_y	1.64	2. 09


Name	Open the fan within 70 degrees	Steel lining:SGK-39			Open the fan within 70 degrees	Steel lining:SGK-13
Code name	SD0G70-20	Moment of inertia cm⁴	I_x	1.01	SD0G70-21	Moment of inertia cm⁴	I_x	0.42
			I_y	2.04			I_y	2.05

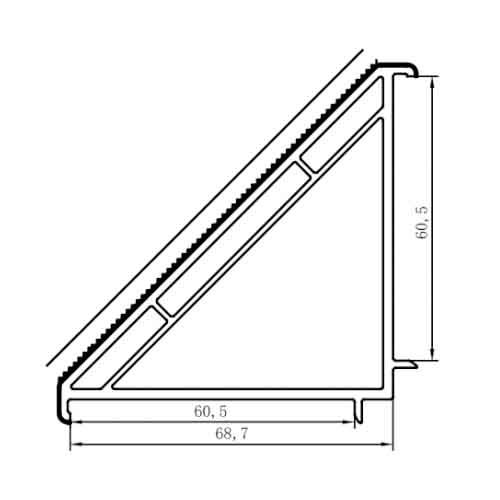

Name	70 external fan opening	Steel lining:SGK-48			70 arbitrary corners	Middle sealing pressure strip	10 pressure strips (65 special)
Code name	SD0G70-22	Moment of inertia cm⁴	I_x	1. 22	SD0G70-73	SD0G70-46	SPXC65-41
			I_y	2.46


Name	70 (90 °) turning angle	Steel lining:SGK-03			70 Strengthen pipe splicing	Steel lining:SGB-03				7 Auchan fan batten (adhesive strip)
Code name	SD0G70-70	Moment of inertia cm⁴	I_x	4.95	SD0G70-71	Moment of inertia cm⁴	I_x	1.12	1.41	SD0P65-44
			I_y	4.95			I_y	3.37	4.32	SD0C65-44


Name	70 round tube	Steel lining:SGB-07			25 pressure strip (70 special high 25)	17 pressure strip (70 special high 25)
Code name	SD0G70-72	Moment of inertia cm⁴	I_x	11.8	SD0G70-45	SD0G70-44
			I_y	11.8


Name	25 Champions League frame pressure strip	UEFA Champions League 14 box pressure strip	25 Champions League press strips	14 Champions League pressure strips	7 Auchan frame bead (adhesive strip)
Code name	SD0G70-40	SD0G70-41	SD0G70-42	SD0G70-43	SD0P65-43
					SD0C65-43


Name	70 square door frame	Steel lining:SGB-01				70 auxiliary mullions	Steel lining:SGK70-60
Code name	SD0G70-12	Moment of inertia cm⁴	I_x	0.86	1.08	Meter weight Kg/m：1.617	Moment of inertia cm⁴	I_x	0.44
			I_y	1.64	2.09			I_y	1. 53


Name	70 inner door leaf	70 external door leaf	Steel lining:SGB-13
Code name	SD0G70-23	SD0G70-24	Moment of inertia cm⁴	I_x	2.86
				I_y	4.48

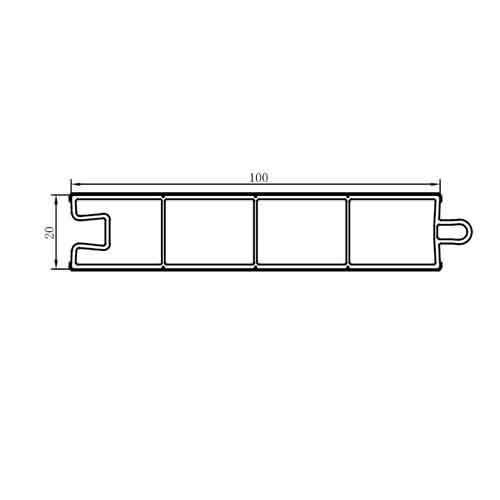

Name	Door core board	25 pressure strip (70 special high 25)	17 pressure strip (70 special high 25)
Code name	SPXC60-50	SD0G70-45	SD0G70-44
