65 Casement Series

The production of profiles has low energy consumption and the reuse of water resources. Multi chamber insulation structure with low thermal conductivity and significant energy-saving effect.

Email:

sdzt@shengdaprofiles.com

WhatsApp:

Category

Tag list

产品描述

The production of profiles has low energy consumption and the reuse of water resources. Multi chamber insulation structure with low thermal conductivity and significant energy-saving effect. It has the properties of insulation, flame retardancy, fear of acid, alkali and humid environment, and can meet the requirements of large temperature difference and high ultraviolet area. It has excellent anti-aging performance.

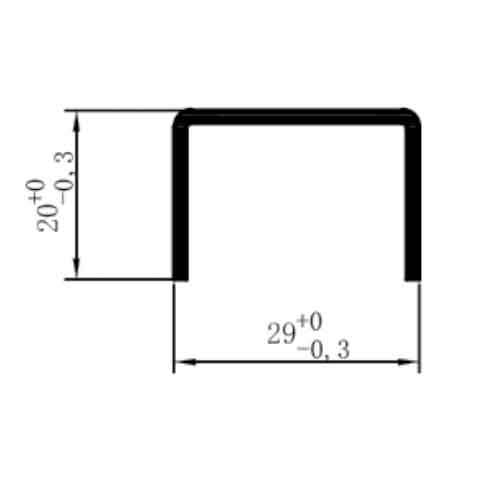

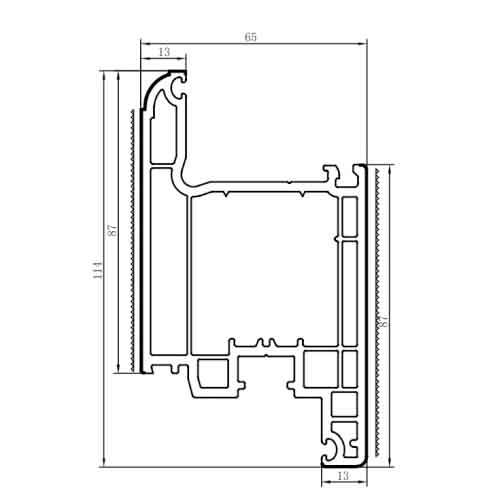

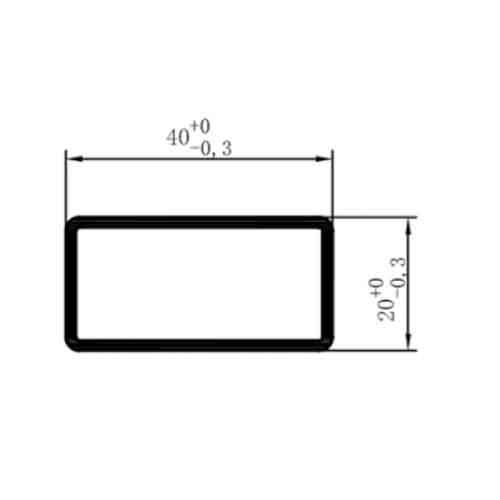

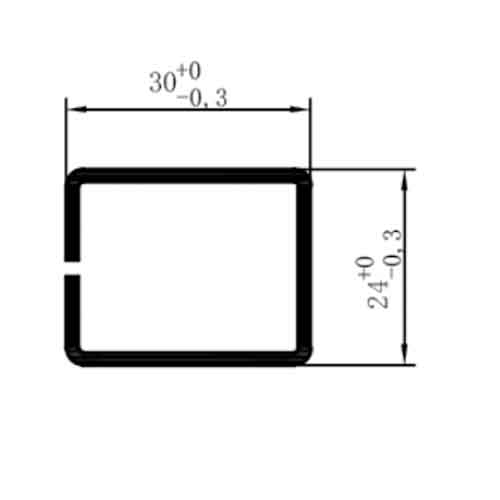

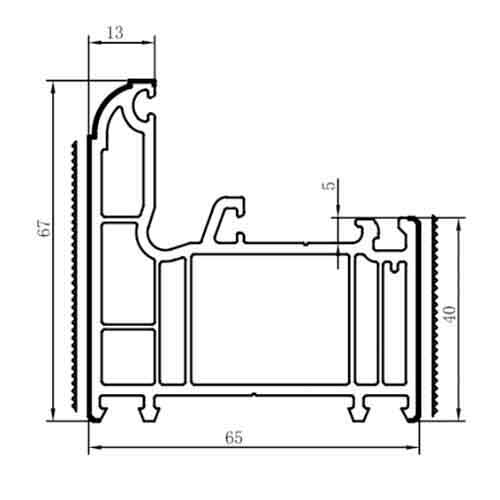

Name	65 Flat Frame	65 Flat Frame	Steel lining:SGK-41			65 Flat Frame	Steel lining:SGK-41
Code name	SD0Y65-10	SD0Y65-11A	Moment of inertia cm⁴	I_x	1.33	SDOY65-13	Moment of inertia cm⁴	I_x	1.33
				I_y	1. 82			I_y	1. 82

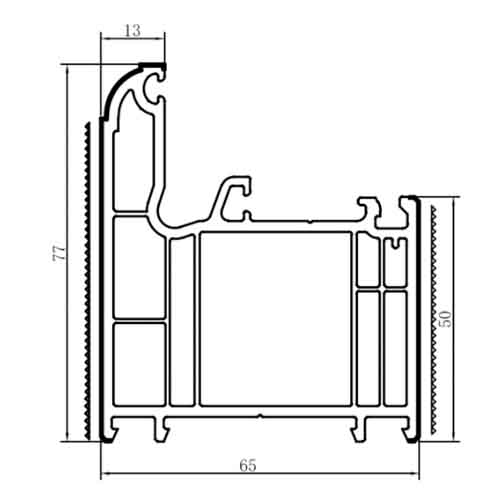

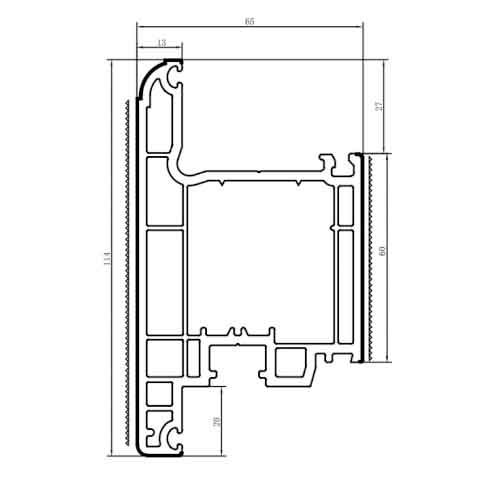

Name	Open fan within 65	Open fan within 65	Steel lining:SGK-40
Code name	SD0Y65-20	SD0Y65-22A	Moment of inertia cm⁴	I_x	0.40
				I_y	1.32

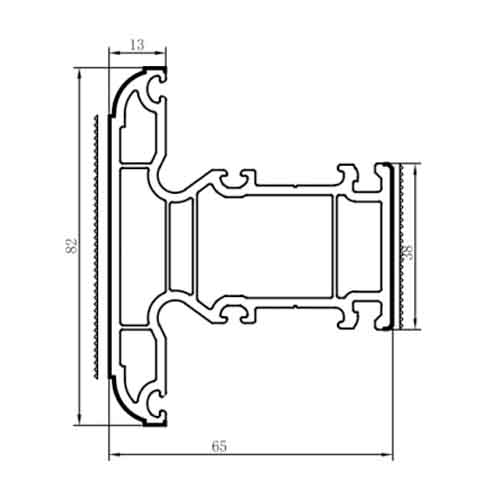

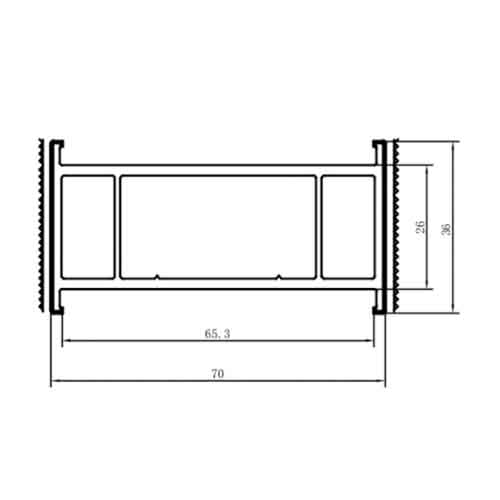

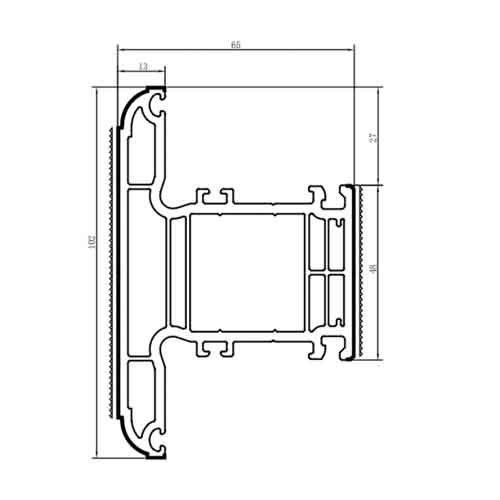

Name	65 flat open mullion	65 flat open mullion	Steel lining:SGB-01
Code name	SD0Y65-30	SD0Y65-31A	Moment of inertia cm⁴	I_x	0.86	1.08
				I_y	1.64	2.09

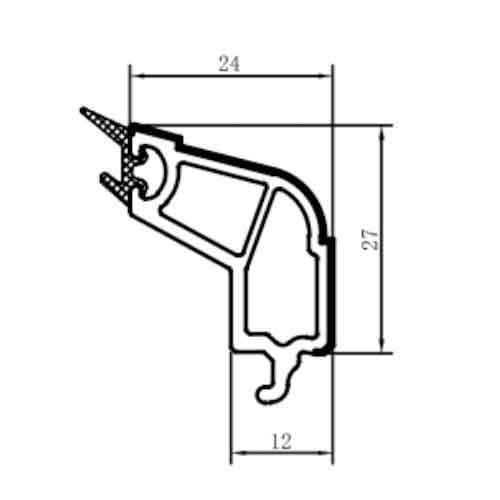

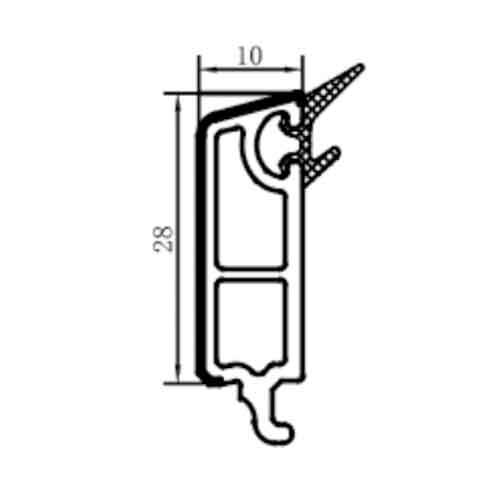

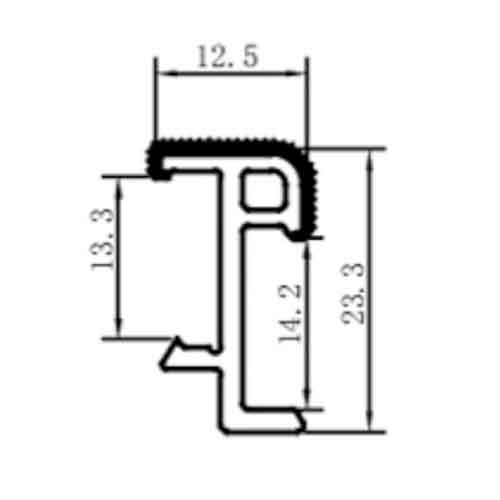

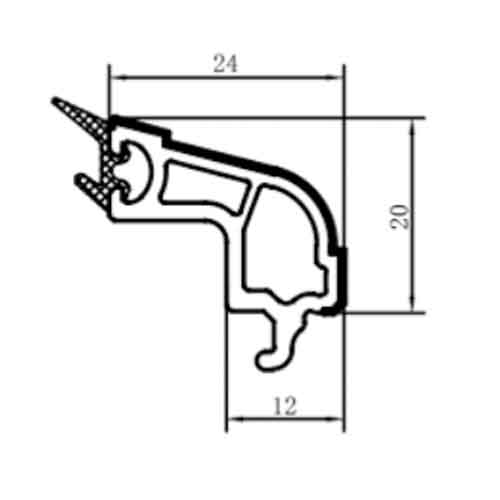

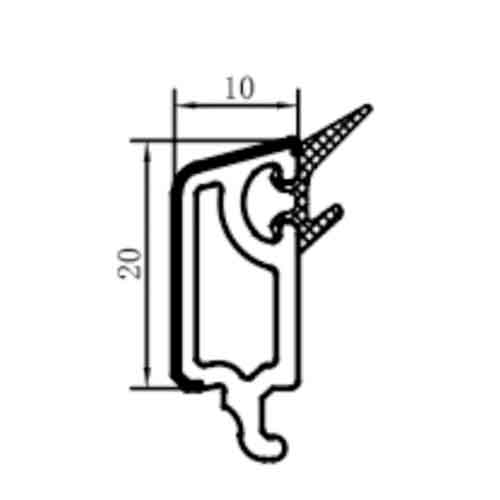

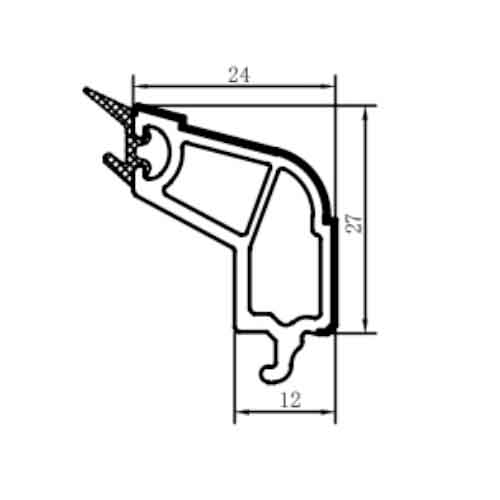

Name	24 Auchan frame batten	10 pressure strips (65 special)	10B pressure strip
Code name	SDOC65-40	SPXC65-41	SPXC60B-41

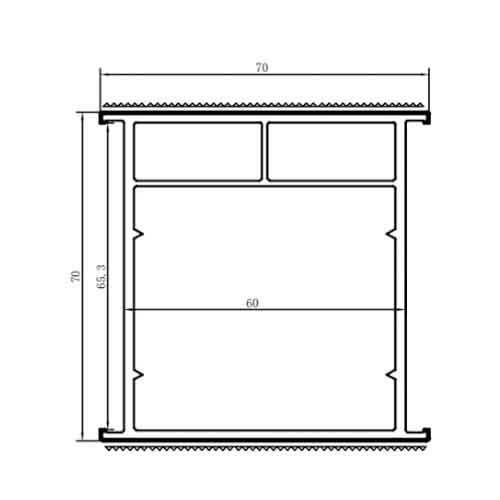

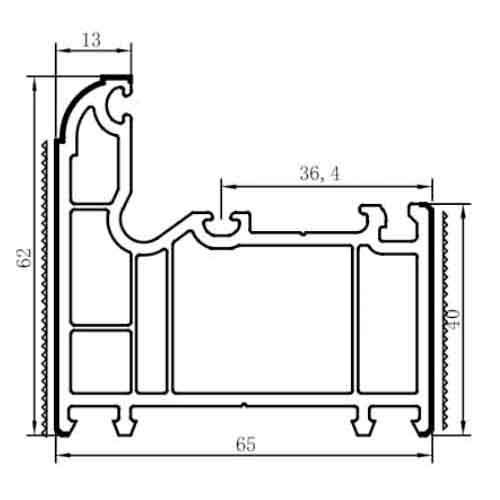

Name	65 external fan	Steel lining:SGK-43			65 Strengthen pipe splicing	Steel lining:SGB-03
Code name	SDOY65-21-1	Moment of inertia cm⁴	I_x	2.08	SDOY65-70	Moment of inertia cm⁴	I_x	1.12	1.41
			I_y	2.02			I_y	3.37	4.32

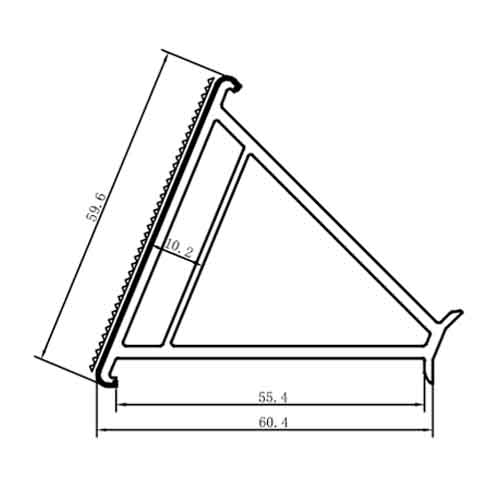

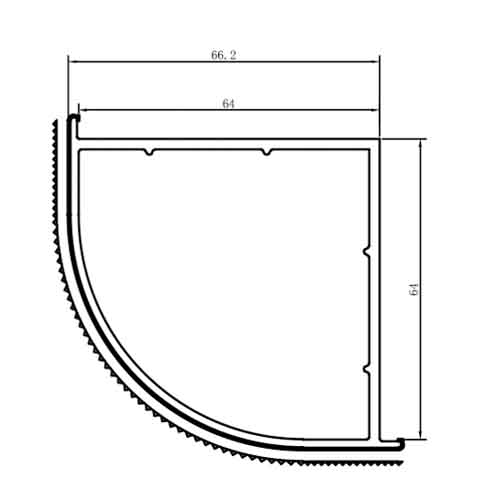

Name	65 (90 °) turning angle	Steel lining:SGK-03			65 (135 °) turning angle	Steel lining:SGK-42
Code name	SDOY65-71	Moment of inertia cm⁴	I_x	4.95	SDOY65-72	Moment of inertia cm⁴	I_x	1.28
			I_y	4.95			I_y	1.21

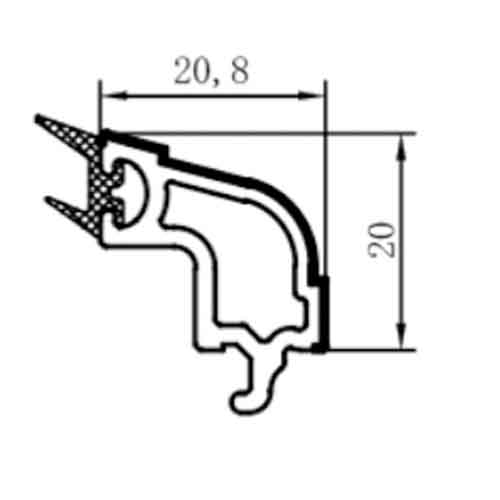

Name	65 Plus (Large)	Steel lining:SGB-12			7 Auchan frame bead (adhesive strip)	7 Auchan fan batten (adhesive strip)
Code name	SD0Y65-73	Moment of inertia cm⁴	I_x	11.22	SD0P65-43	SD0P65-44
			I_y	11.22	SD0C65-43	SD0C65-44

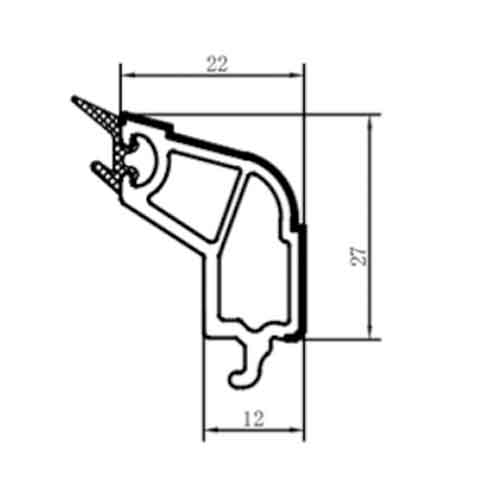

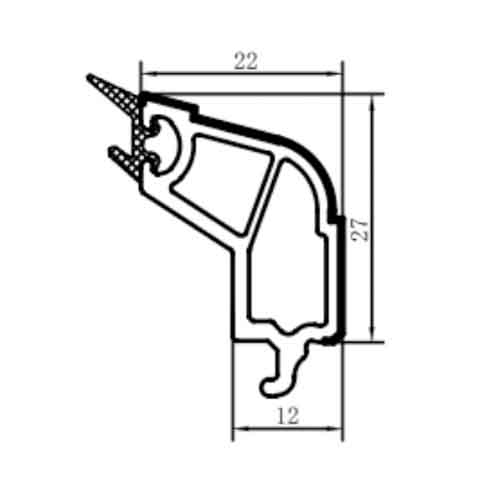

Name	22 Auchan frame batten	24 Auchan fan layering	21 Auchan layering	65-60 splicing strips
Code name	SD0C65-41	SD0C65-42	SD0C60-41	SD0Y65-74

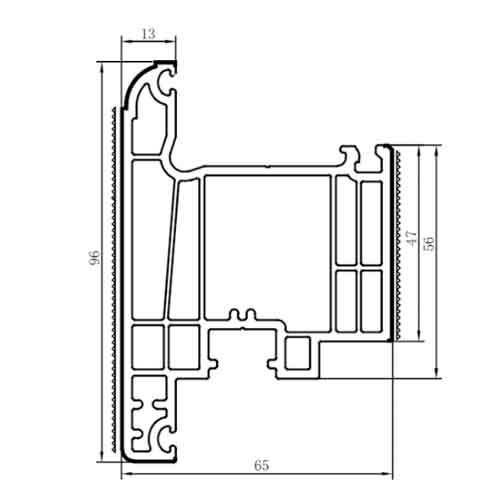

Name	65 flat door frame	65 flat open mullion	Steel lining:SGB-06
Code name	SD0Y65-12	SD0Y65-32	Moment of inertia cm⁴	I_x	2.25	2.87
				I_y	2.25	2.87

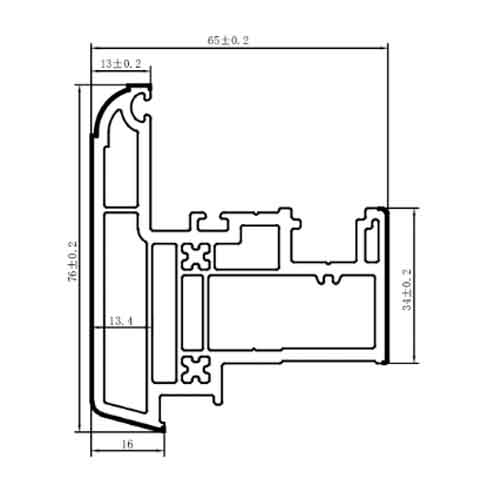

Name	65 external door leaf	65 interior door leaf	Steel lining:SGB-15				65 auxiliary mullions	Steel lining:SGK-37
Code name	SD0Y65-23	SD0Y65-24	Moment of inertia cm⁴	I_x	5.59	7.14	SD0Y65-60	Moment of inertia cm⁴	I_x	0.19
				I_y	5.59	7.14			I_y	1. 74

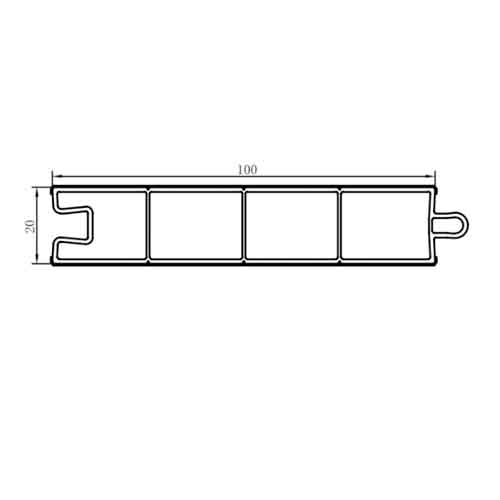

Name	Door core board	24 Auchan frame batten	22 Auchan frame batten	10 pressure strips (65 special)	7 Auchan frame bead (adhesive strip)
Code name	SPXC60-50	SD0P65-40	SD0P65-41	SPXC65-41	SD0P65-43
		SD0C65-40	SD0C65-41		SD0C65-43
