产品描述

The production of profiles has low energy consumption and the reuse of water resources. Multi chamber insulation structure with low thermal conductivity and significant energy-saving effect. It has the properties of insulation, flame retardancy, fear of acid, alkali and humid environment, and can meet the requirements of large temperature difference and high ultraviolet area. It has excellent anti-aging performance.

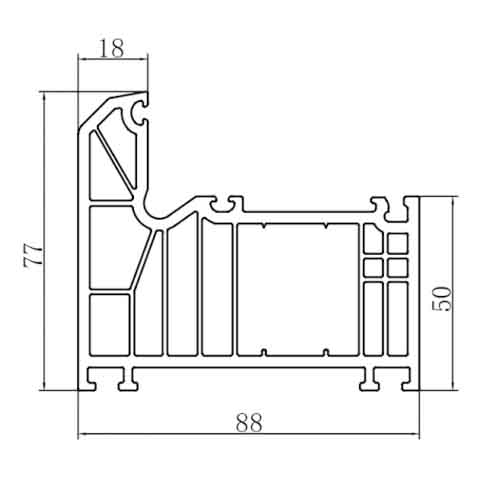

Name	88 Flat Frame	88 internal fan opening	88 flat open mullion
Code name	SDTB88-10	SDTB88-20	SDTB88-30

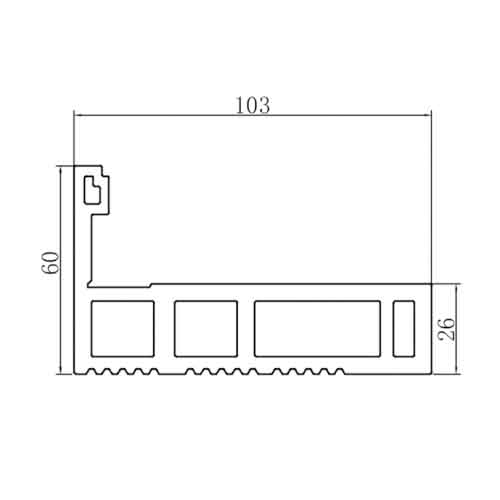

Name	88 external door leaf	88 interior door leaf	103 box attached
Code name	SDTB88-22	SDTB88-21	SDTB88-63

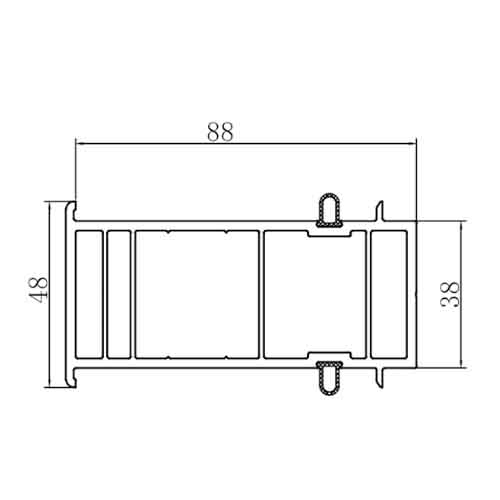

Name	88 auxiliary mullion	88 external conversion box	88 High Frame (27)	88 High Frame (48)
Code name	SDTB88-61	SDTB88-62	SDTB88-64	SDTB88-65

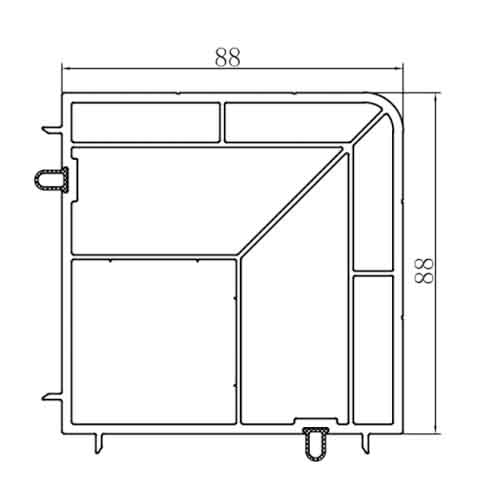

Name	88 Strengthen pipe splicing	88 (90 °) angle	88 Strengthening Body
Code name	SDTB88-70	SDTB88-71	SDTB88-72

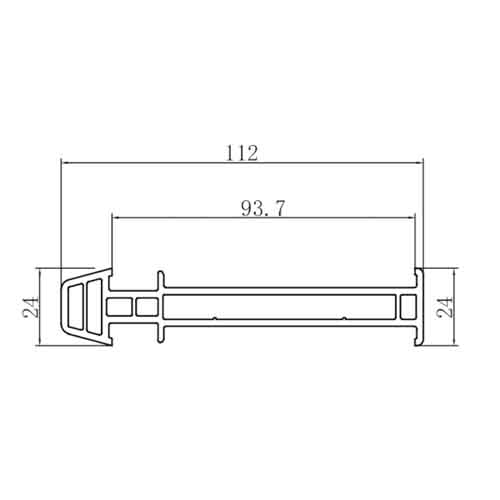

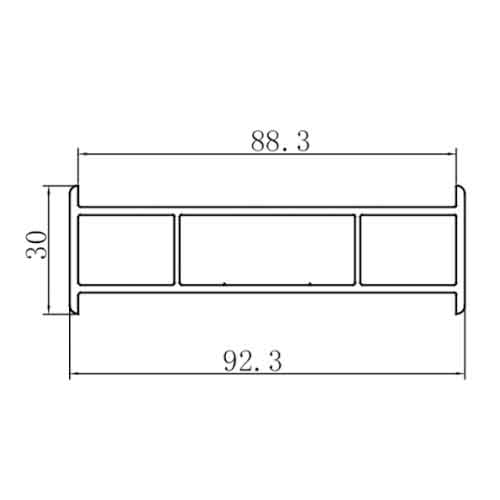

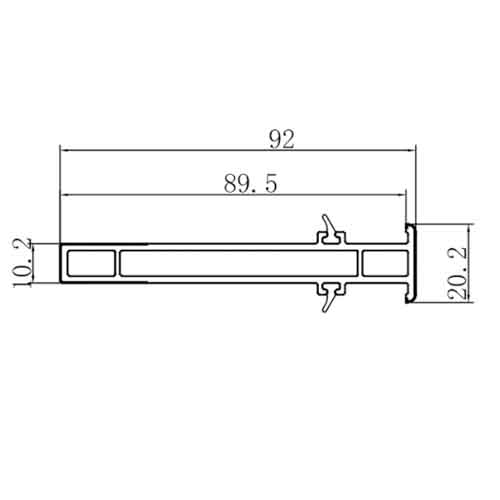

Name	88 puzzle pieces	88 Strengthen pipe splicing (elevate frame)	92 splicing strips
Code name	SDTB88-73	STHD88-73	SDTB76-70


Name	88 auxiliary frame	88 middle sealing pressure strip	10 pressure strips (65 special)	10B pressure strip
Code name	SDTB88-60	SDTB88-42	SPXC65-41	SPXC60B-41


Name	88 box pressure strip	88 pressure strips	88 frame pressure strip (25)	25 Champions League press strips
Code name	SDTB88-40	SDTB88-41	SDTB88-43	SD0G70-42


Name	88 flat frame steel lining 88 flat open mullion steel lining 88 Strengthen the splicing and closing lining of pipes	88 inner fan steel lining	88 external door leaf steel lining
Steel lining	SDGC88-10B	SDGC88-20K	SDGC88-20B


Name	88 (90 °) angle closed steel lining	88 (90 °) angle opening steel lining	88 auxiliary mullion steel lining	88 reinforced steel lining
Steel lining	SDGC88-70B	SDGC88-70K	SDGC88-60B	SDGC88-71B


Name	Steel lining:SGB76-03			88 piece steel lining	Steel lining:SGB-03	Steel lining:SGK80-73
Steel lining	Moment of inertia cm⁴	I_x	0.9	SDGC88-73B		Moment of inertia cm⁴	I_x	0.59
		I_y	5.89				I_y	2.74
