UPVC tiles

Wave distance:160mm Actual width:1050mm Effective width:960mm

Email:

sdzt@shengdaprofiles.com

WhatsApp:

+86-13785255778

Inquire Now

Main tile specifications

Thickness	3.0mm
Length	Customized according to multiples of pitch
Wave distance	160mm
Actual width	1050mm
Effective width	960mm
Wave height	30mm
Pitch	220mm
Note	Length and color can be customized according to customer requirements.

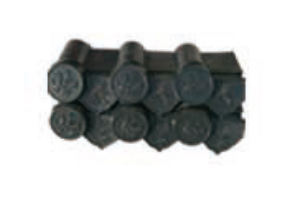

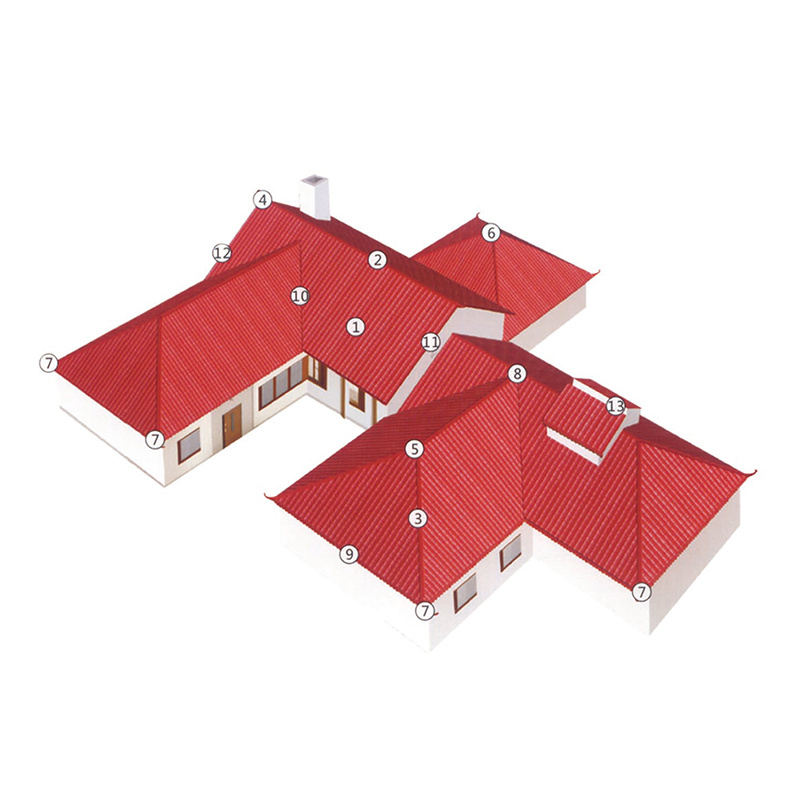

1. Main tile
2. Right spine tile
3. Diagonal ridge tile
4. At the end of the main roll
5. Three links
6. Big Four Connections
7. Slanted tail
8. T-shaped tee
9. Antique drip board
10. Internal sink
11. Right eaves panel
12. Left eaves panel
13. Floodboard

Accessories List

Serial Number	Name	physical object image	Specifications	Cross-sectional dimensions

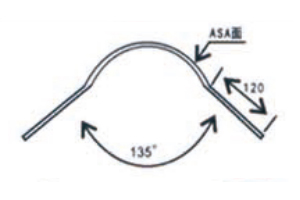

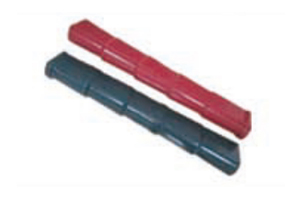

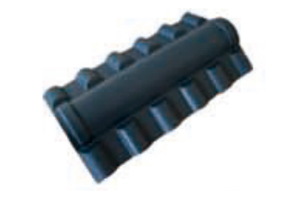

1	Right spine tile		1050mm in length and 960mm in effective width

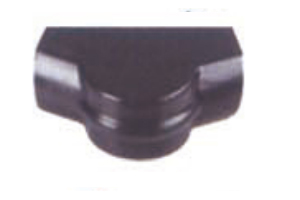

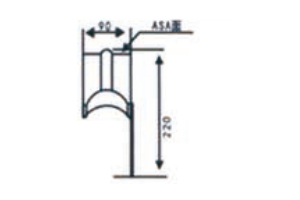

2	Straight spine head		Length 300mm, width 90mm, height 220mm

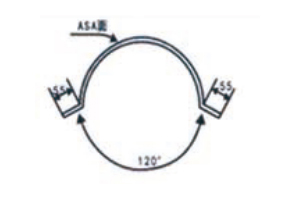

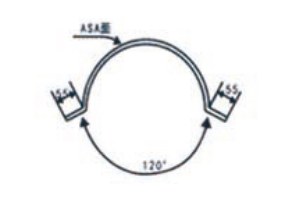

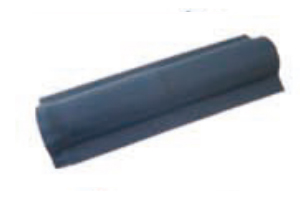

3	Diagonal ridge tile		1050mm in length and 1020mm in effective length

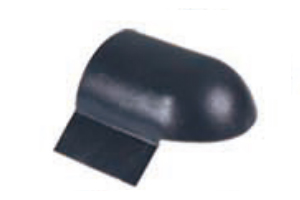

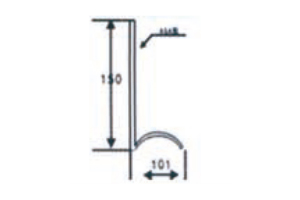

4	Oblique ridge end		150mm in length
5	Dripping eaves		1050mm in length and 960mm in effective length

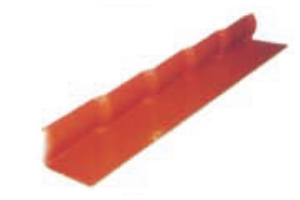

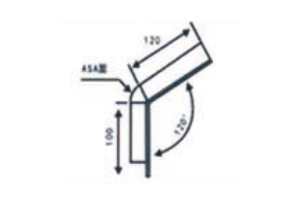

6	Left and right eaves		1220mm in length and 1095mm in effective length

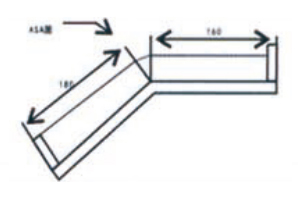

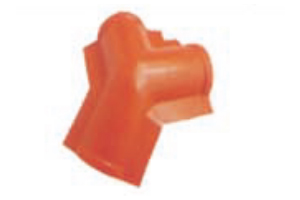

7	Three-way		160180180mm
8	Upturned corner		350mm in length and 300mm in height

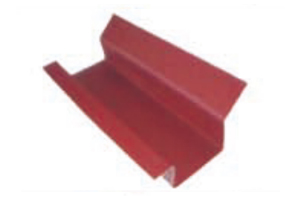

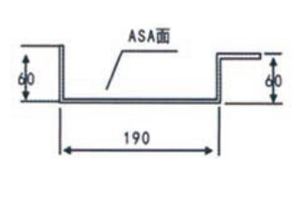

9	Diversion channel		2000mm in length
10	Flashing		1050mm in length

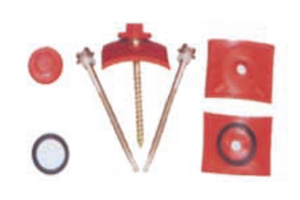

11	Special accessories		6.5-7.5mm in length and 5.5-6.3mm in thickness

UPVC tiles

Wave distance:160mm Actual width:1050mm Effective width:960mm

Email:

sdzt@shengdaprofiles.com

WhatsApp:

+86-13785255778

Inquire Now
